Brass valve assemblies · Commercial cooking

Built for the wok burner.

KB5, KB8 and 7B brass valves for medium-pressure, high-output wok stoves. Explore each model, compare the photographed configurations and send us your burner requirements.

Explore KB5 · KB8 · 7B ↓

KB5 brass valve assembly for a medium-pressure wok burner — KB5 · Brass valve assembly

Three model families

Find your valve configuration.

For commercial wok-stove manufacturers, assemblers and replacement-parts distributors. Select a model and open any photo for a closer look.

Medium-pressure wok stove

7B

Brass valve assembly

Ask about 7B ↗

7B brass medium-pressure wok burner valve — product view 1 — 7B · View 1

7B brass medium-pressure wok burner valve — product view 2 — 7B · View 2

7B brass medium-pressure wok burner valve — product view 3 — 7B · View 3

7B · Reference dimensions

Tube assembly length: 380 mm
End section length: 90 mm
Tube opening annotation: 3 mm (see drawing)
Valve-tip annotations: 1.1 / 0.6

Dimensions refer to the illustrated configuration. Units for the valve-tip annotations are not specified on the reference sheet; confirm them with the final drawing.

Open 7B dimension reference ↗

Medium-pressure wok stove

KB5

Brass valve assembly

Ask about KB5 ↗

KB5 brass medium-pressure wok burner valve — product view 1 — KB5 · View 1

KB5 brass medium-pressure wok burner valve — product view 2 — KB5 · View 2

KB5 brass medium-pressure wok burner valve — product view 3 — KB5 · View 3

KB5 brass medium-pressure wok burner valve — product view 4 — KB5 · View 4

KB5 · Reference dimensions

Tube assembly length: 240 mm
End section length: 90 mm
Tube opening annotation: 3 mm (see drawing)
Valve-tip annotations: 0.85
Additional valve dimensions: 45 mm / 20 mm (see drawing)

Dimensions refer to the illustrated configuration. Units for the valve-tip annotations are not specified on the reference sheet; confirm them with the final drawing.

Open KB5 dimension reference ↗

Medium-pressure wok stove

KB8

Brass valve assembly

Ask about KB8 ↗

KB8 brass medium-pressure wok burner valve — product view 1 — KB8 · View 1

KB8 brass medium-pressure wok burner valve — product view 2 — KB8 · View 2

KB8 brass medium-pressure wok burner valve — product view 3 — KB8 · View 3

KB8 · Reference dimensions

Tube assembly length: 300 mm
End section length: 90 mm
Tube opening annotation: 3 mm (see drawing)
Valve-tip annotations: 0.95

Dimensions refer to the illustrated configuration. Units for the valve-tip annotations are not specified on the reference sheet; confirm them with the final drawing.

Open KB8 dimension reference ↗

Dimension references

Check the marked measurement points.

Open a sheet to view the original annotations. Confirm dimensions and configuration when requesting a sample.

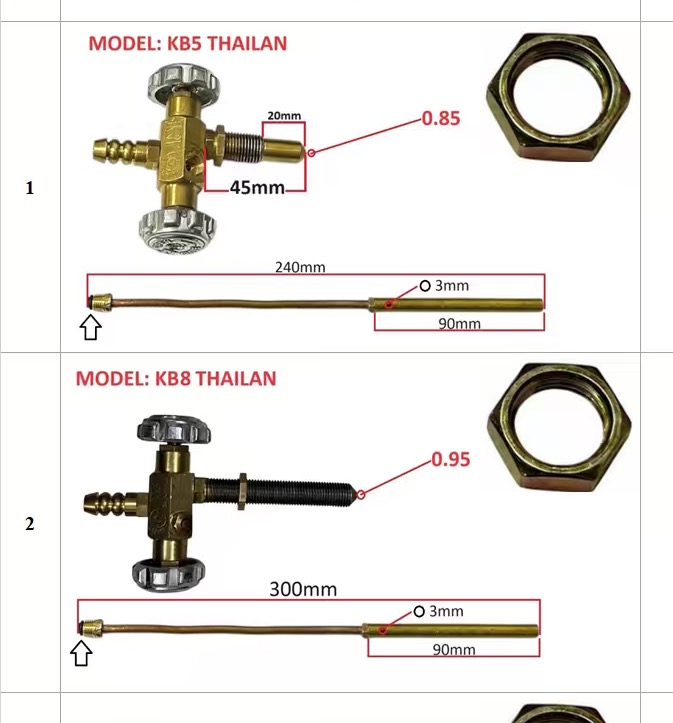

KB5 and KB8 dimension sheet showing 240 mm and 300 mm tube assemblies, 90 mm end sections and valve annotations — KB5 · KB8 dimension reference

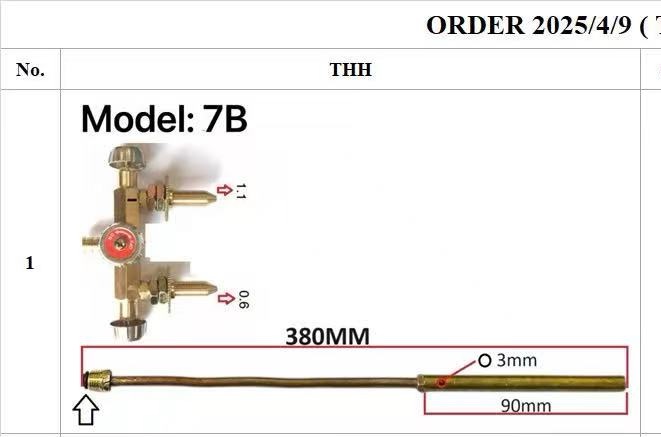

7B dimension sheet showing 380 mm tube assembly, 90 mm end section and 1.1 and 0.6 valve-tip annotations — 7B dimension reference

Match to your burner

Confirm the connections and operating conditions.

Send the model name with a drawing, sample photo or burner details. We will confirm the required valve and accessory configuration before quoting.

Gas & pressure: Gas type, required inlet pressure and burner demand.
Installation dimensions: Hose or threaded connection sizes, nozzle dimensions and mounting arrangement.
Supply configuration: Valve-only or assembly scope, tubing, fittings and other required parts.
Order requirements: Sample or production quantity, destination market, packaging and test requirements.

OEM / wholesale inquiries

KB5, KB8 or 7B?

Tell us the model, quantity and burner application. Pricing, minimum order quantity and lead time are confirmed in your project quotation.
